Genox® Smart Digital Chlorine Dioxide Generator
Advanced, safe, and efficient on-site generation of Chlorine Dioxide for superior water disinfection.
Our system offers precise chemical dosing, real-time monitoring, and a fully encapsulated reaction chamber to deliver unmatched performance and safety for industrial and municipal applications.
Why Partner with Ionic?
We provide more than just equipment; we deliver reliable, end-to-end solutions backed by unparalleled expertise and support.
Decades of Expertise
Proven experience in water treatment and disinfection solutions.
Cutting-Edge Technology
Ensuring maximum safety, efficiency, and reliability in every system.
Comprehensive Support
Dedicated after-sales support and ongoing technical assistance.
Trusted by Industry Leaders
Customizable solutions trusted by leading industries and municipalities.
The Power and Purpose of Chlorine Dioxide (ClO₂)
A powerful and stable disinfectant engineered for superior water purification across a wide range of industrial and municipal applications.
A Superior Disinfectant
Chlorine dioxide (ClO₂) is a premier water treatment solution used to eliminate unpleasant odors, flavors, and colors. It effectively removes mold and algae and aids in the removal of iron and manganese from untreated water. Unlike traditional chlorine, it achieves this without forming significant levels of harmful disinfection byproducts (DBPs) such as trihalomethanes (THMs).
Its major advantage over disinfectants like ozone or UV light is its lasting effect, ensuring water remains pure and safe all the way to the tap. This residual disinfectant capability is crucial for protecting water against re-contamination as it travels through complex distribution networks. Furthermore, its effectiveness is maintained across a wide pH range, ensuring reliable performance under varying water conditions. Ionic Engineering specializes in delivering innovative, large-scale chlorine dioxide generation systems tailored to your needs.
Key Applications
Key Features & Advantages
Key Features

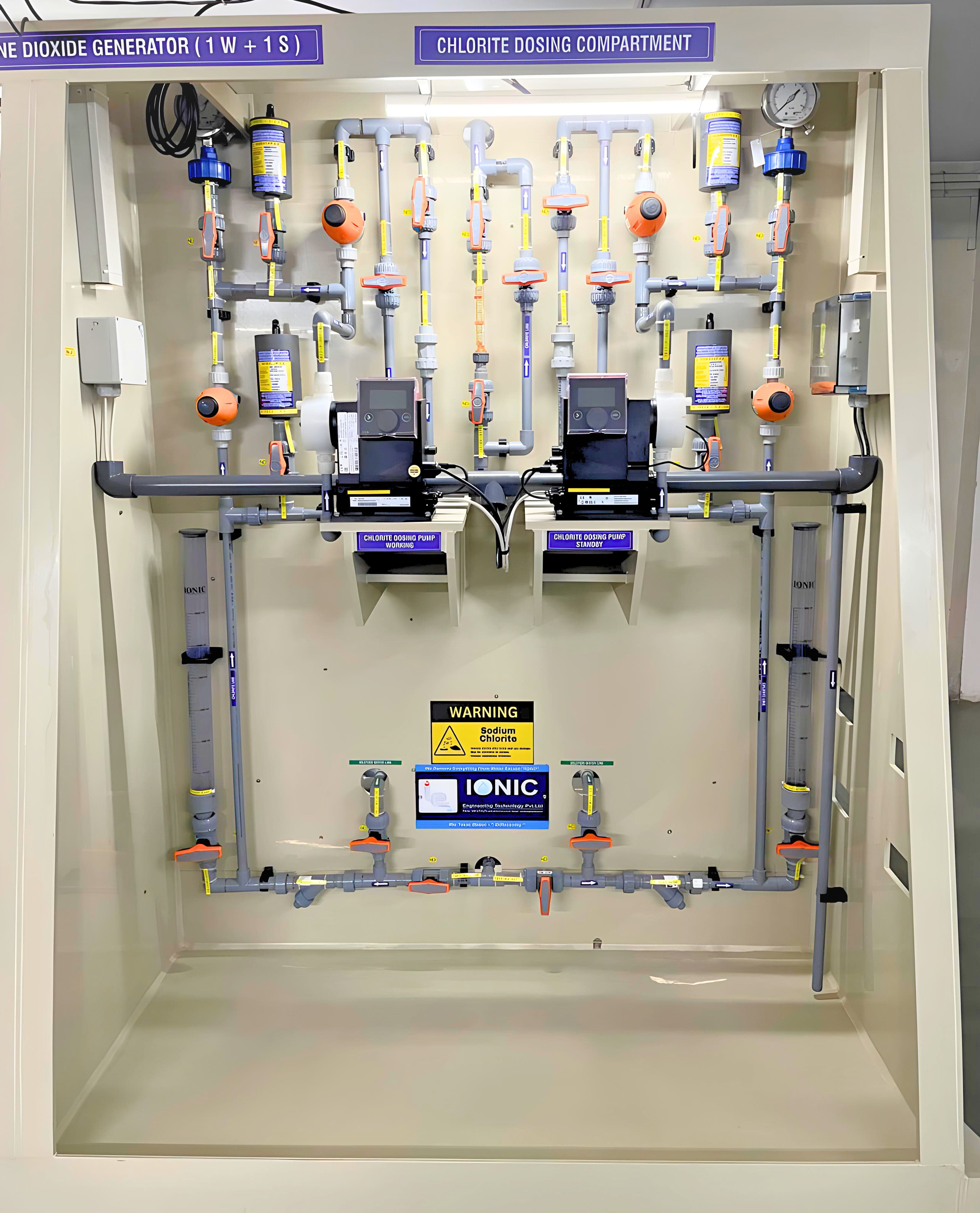

- Smart Digital Metering pumps for precise chemical dosing.
- Production capacity variation from 10-100%.
Advanced Control
- Integrated dilution water and precursor chemical flow control.
- By-pass assembly with inbuilt static mixer for safe dilution.
Safety & Construction

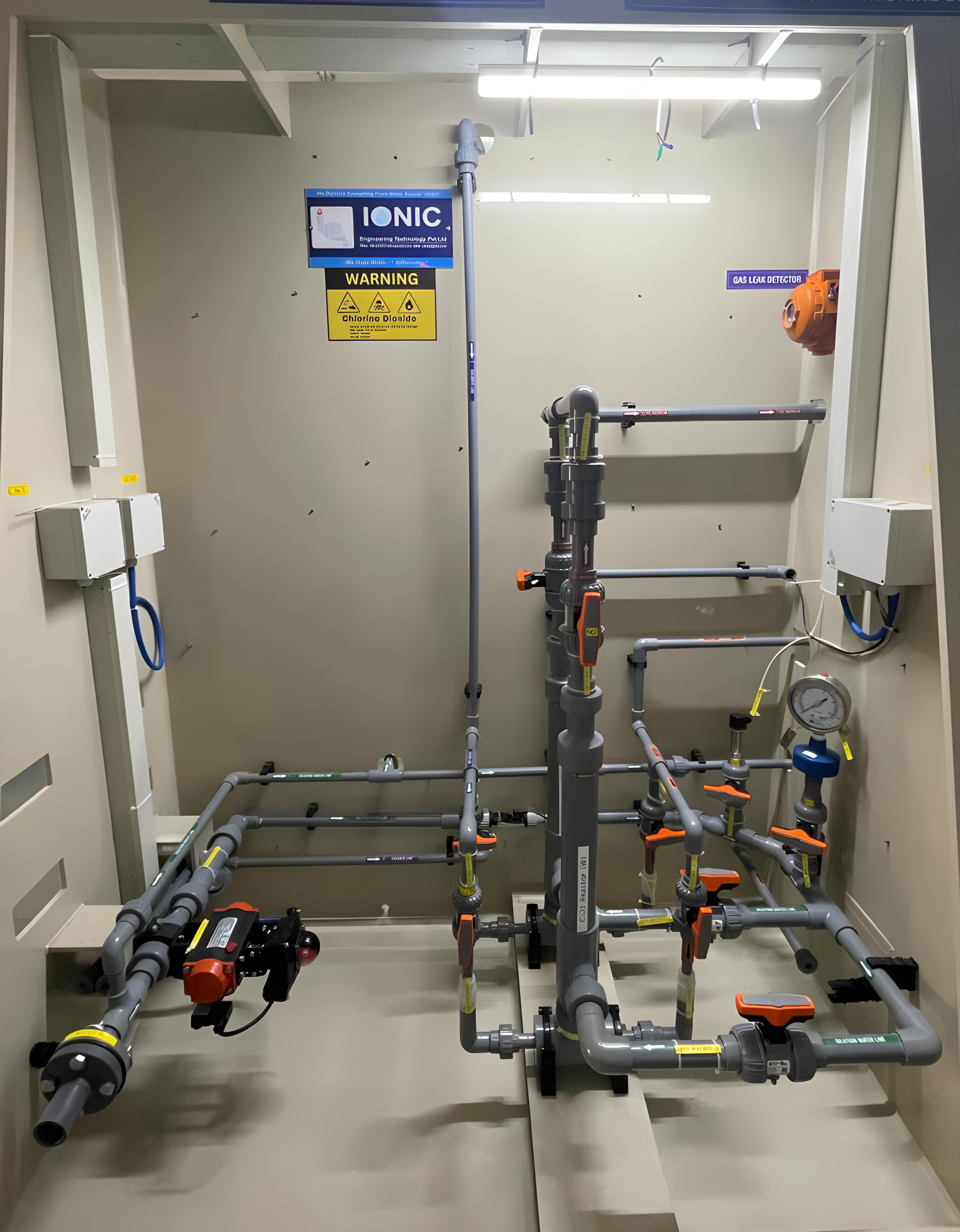

- Encapsulated, water-submerged reaction chamber.
- Durable PVDF reaction chamber, injection valves, and tubing.
- Skid-mounted, pre-plumbed, and wired for easy installation.

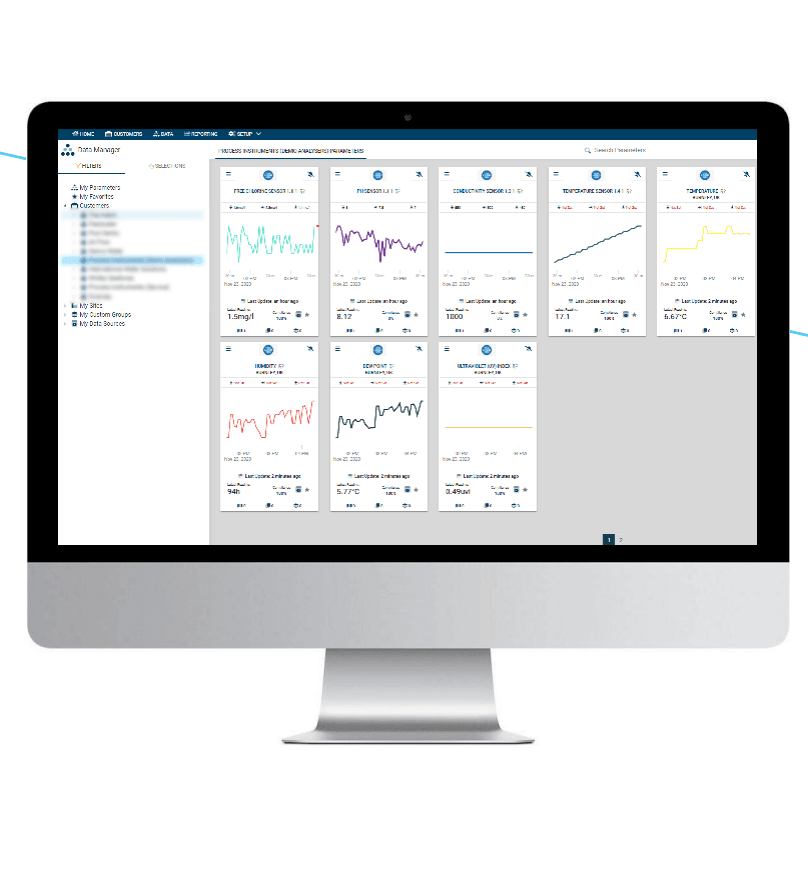

Real-time Monitoring
- Online ClO₂ sensor integration to monitor concentration at the reactor outlet.
- Ensures consistent output and process safety.

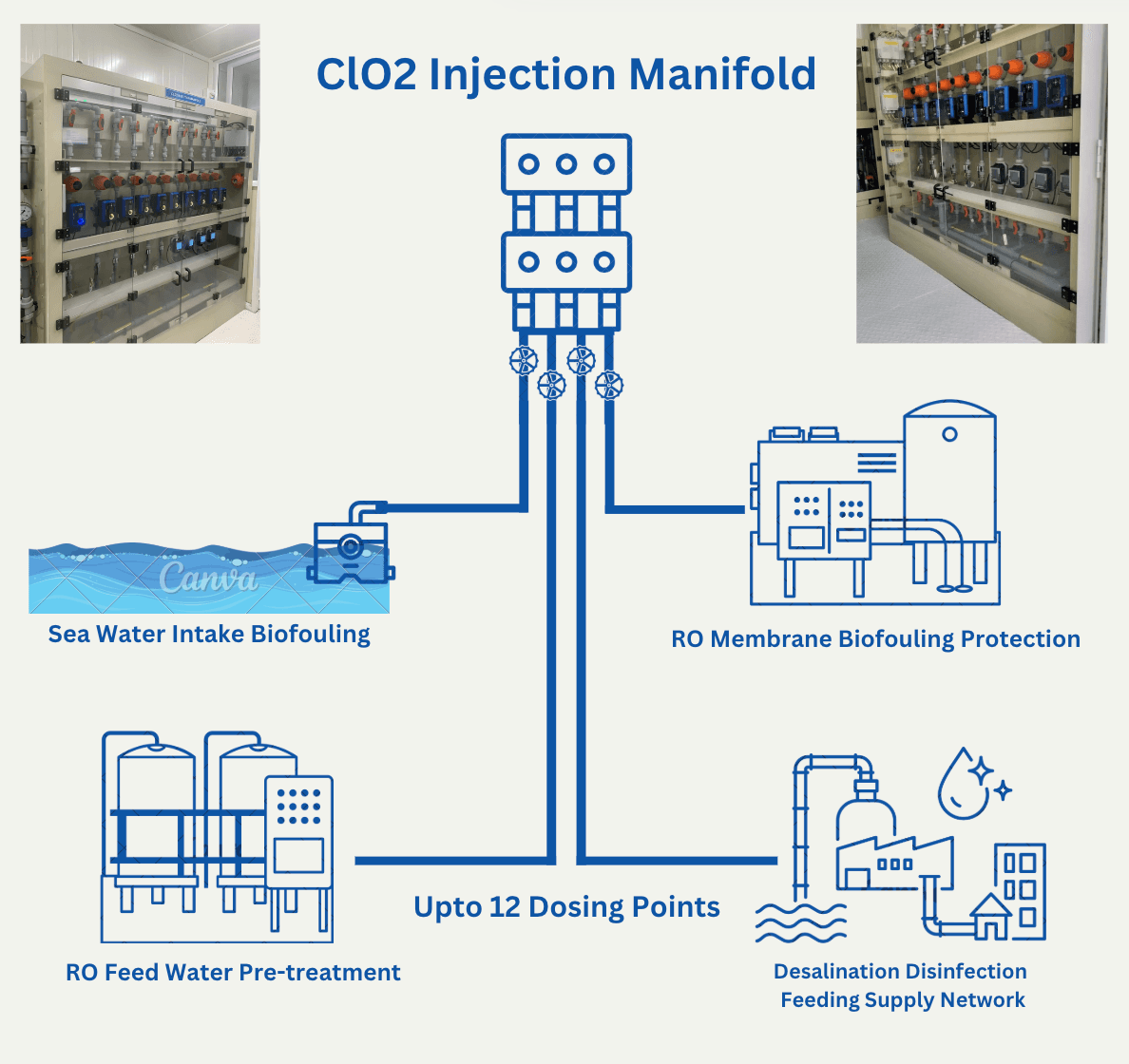

Cost Saving Technology for Multiple Dosing Points
Our intelligent system design allows a single generator to serve multiple dosing points, significantly reducing capital expenditure and operational complexity.

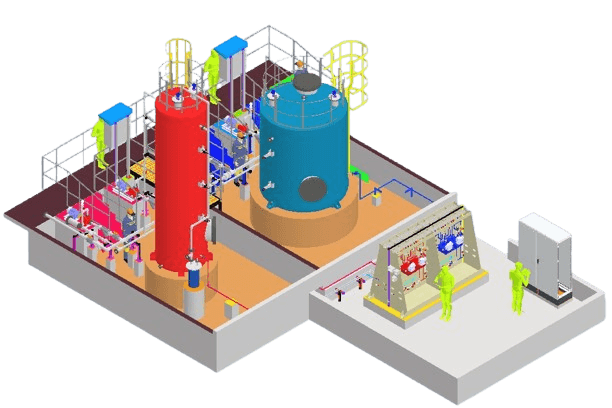

Integrated Bulk Storage for Precursor Chemicals
A reliable Chlorine Dioxide generation system requires an equally robust and safe bulk storage solution. We provide complete, end-to-end engineering for the storage and handling of precursor chemicals, ensuring operational safety and system integrity.
Hydrochloric Acid (HCl) Storage
Engineered for maximum safety and containment.
- Vented Tanks with Fume Scrubbers: All HCl storage tanks are properly vented to a dedicated fume scrubber to manage pressure during filling and prevent hazardous fumes from escaping.
- Corrosion-Resistant Materials: Transfer systems use centrifugal pumps made of specialized plastic materials with suitable mechanical seals or magnetic drives to handle the highly corrosive acid.
- Personnel & Environmental Safety: Systems are designed with critical safety features, including provisions for emergency showers and requiring personnel to use proper protective equipment (PPE).
Sodium Chlorite (NaClO₂) Storage
Designed for stability and safe handling.
- Safer Liquid Solution Handling: We prioritize the use of sodium chlorite in its liquid solution form, which is easier to handle, eliminates irritating dust, and is not classified as an oxidant.
- High-Compatibility Materials: Tanks are constructed from compatible materials like FRP (Fiber-Reinforced Plastic), PVC, or polyethylene, ensuring a long, maintenance-free life.
- Engineered to Prevent Cross-Contamination: Storage and unloading nozzles are clearly defined to prevent accidental mixing with acids, which can dangerously release Chlorine Dioxide gas.

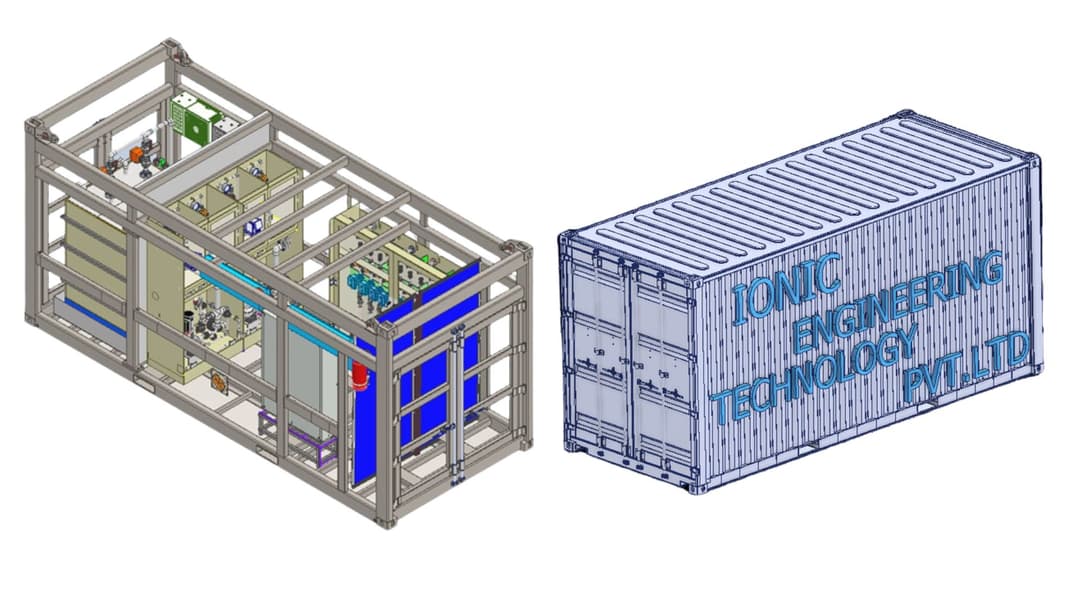

Containerised Turnkey Systems
For rapid deployment and ease of installation, our systems are available as fully containerised, turnkey solutions. Housed in robust, weatherproof containers, they integrate all necessary equipment for immediate on-site operation.
- Ideal for remote or temporary projects.
- Pre-assembled and factory-tested.
- Minimizes installation time and costs.
Brochures & Documents
Genox® Smart Digital Chlorine Dioxide Generator
Chlorine Dioxide Generator Roadmap
Chlorine Dioxide Treatment Questionnaire
Clients
Our Clients
Discover the Success Stories and Satisfaction of Clients Who Have Benefited from Our Expertise and Personalized Financial Guidance
Ready to Improve Your Process with Ionic?
Our team of experts is ready to help you find the most effective and innovative solution tailored to your specific requirements.
