Engineered for Longevity.
Hydraulically Balanced RO Design.
Stop RO failure before it starts. RO-Matrix combines Closed Loop efficiency with real-time smart monitoring to ensure predictable and reliable performance up to 98% recovery.
The Limits of Traditional RO
In legacy systems, sequential membrane stages are fed by a single steady-state pump. This forces lead arrays to operate at high flux while tail arrays suffer from low crossflow and concentration polarization, making them highly prone to fouling and sealing.
The Closed Loop Advantage
Closed Loop Reverse Osmosis improves on traditional design by concentrating feed water in time vs space.
Instead of multiple stages, it uses a single stage with 100% brine recirculation. A variable-speed pump increases frequency with each cycle to ensure membranes get exactly the flux they need—neither too much nor too little.
Traditional RO
- Uneven flux distribution
- High fouling in tail elements
- Max ~75% recovery typical
- Fixed pressure wastes energy
Closed Loop RO
- Even flux distribution
- Independent crossflow control
- Up to 98% water recovery
- Variable pressure saves power
Ionic Engineering solves this with the Matrix Real-Time Monitoring System
Unmatched Operational Resilience
By decoupling crossflow from recovery, Closed Loop RO adapts to changing conditions in real-time.
Biofouling Resistance
Salinity and pressure constantly cycle inside the system. This harsh, fluctuating environment deprives microorganisms of the stability they need to survive, naturally inhibiting growth.
Scaling Prevention
We can push salts into supersaturation without scaling. The system flushes supersaturated waste before dissolved salts have time to crystallize, allowing extremely high recovery rates.
Total Flexibility
The system automatically adjusts excessive feed pressure, recovery, or flux based on user-defined set-points. It adapts to seasonal water quality changes without manual recalibration.
How the Process Work
Closed Loop Mode
100% of the brine is recirculated. The high-pressure pump feeds the loop while a circulation pump maintains optimal crossflow.
Concentration
The system concentrates feedwater over time (cycles) rather than space. Salinity increases gradually.
Plug Flow Sweep
Once the set recovery (e.g., 95%) is reached, the concentrated brine is flushed out in a single plug-flow sweep and replaced with fresh feed.
SYSTEM STATUS
RECOVERY: 96.5%
CROSSFLOW: OPTIMIZED
Industries & Applications
Ideal for sites with varying feedwater or high silica concentrations.
Industrial Process Water
Reliable high-purity water for manufacturing.
Food & Beverage
Ingredient water and consistent product quality.
Boiler Pretreatment
High silica removal to protect boiler efficiency.
Irrigation Desalination
Maximizing water usage for agriculture.
Refineries & Chemicals
Handling tough, variable waste streams.
Metals & Plastics
Zero Liquid Discharge (ZLD) minimization.
Frequently Asked Questions
Technical details about the Closed Loop System.
Technical Resources
Download detailed specifications and engineering data.

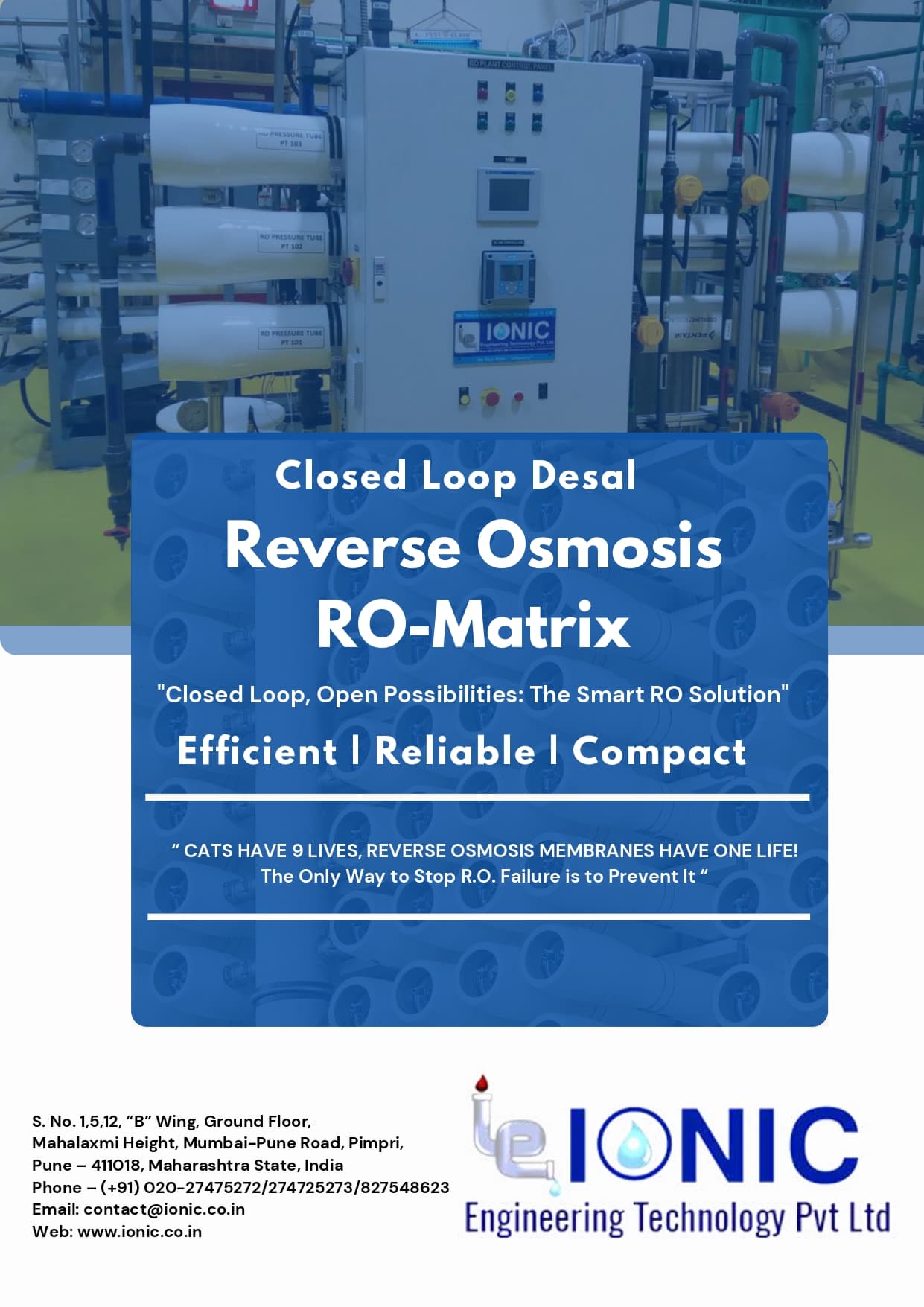

Closed Loop Desal Reverse Osmosis RO-Matrix
