Ionic® Lamella Clarifier

Small in size - Big in performance

Engineered to deliver superior solids removal and optimize water quality by maximizing separation efficiency in a fraction of the space.

Request a Quote
Ionic Chlorine Dioxide Generator

How It Works: High-Efficiency Sedimentation

Working principle diagram of a Lamella Clarifier
1

Flocculation

Untreated water enters a flash mix tank where chemicals are added, causing suspended particles to clump together into larger "flocs".

2

Upward Flow & Settling

Water enters the bottom of the Lamella unit and flows upward. As it rises, the flocs settle onto the large surface area of the inclined plates.

3

Clarified Water Outlet

The clean, clarified water continues to the top of the unit and is discharged evenly over an adjustable weir system.

4

Sludge Collection

Settled precipitates slide down the plates into an integrated hopper at the bottom for periodic removal and disposal.

Choosing the Right Sedimentation Technology

Understanding the key differences is crucial for optimizing your process. Here’s how Lamella Clarifiers stack up against other common technologies.

FeatureLamella ClarifierCircular ClarifierTube Settler
FootprintVery Compact (up to 90% less space)Very LargeCompact
Settling EfficiencyHigh (Ideal for fine particles)ModerateGood
Sludge HandlingGood (Integrated hopper)Complex (Requires scraper)Moderate
MaintenanceLow (No moving parts)High (Moving parts)Moderate (Tube cleaning)

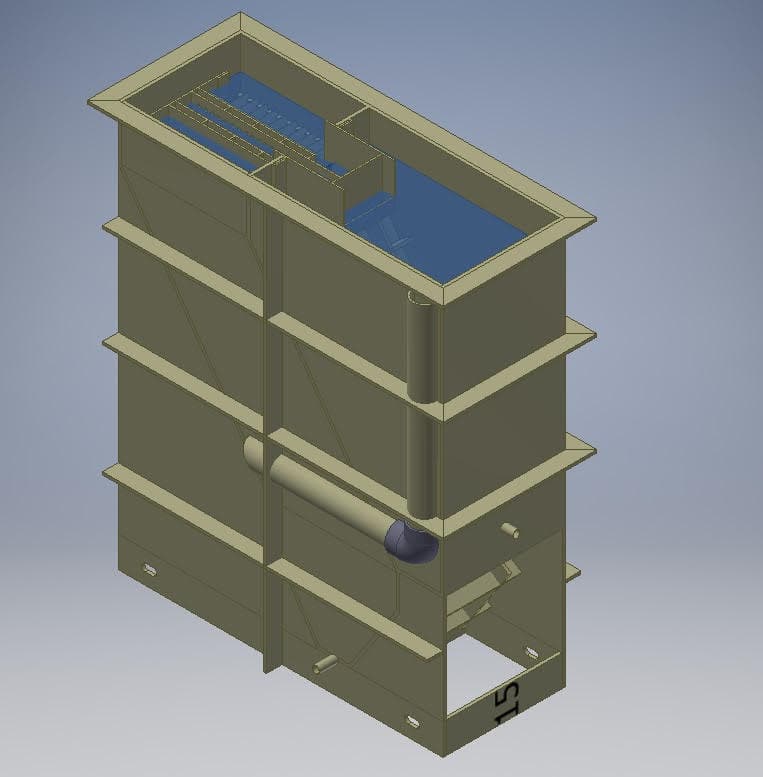

Lamella clarifier made from PP-H engineering plastic

High-Efficiency Lamella Clarifiers in Engineering Plastic

Our Lamella Clarifiers are engineered for superior performance in a compact footprint. By utilizing a series of inclined plates, they dramatically increase the effective settling area, making them far more efficient than traditional settling tanks. For applications requiring maximum chemical and corrosion resistance, we construct these units from high-grade engineering plastic (PP-H). This ensures exceptional durability and a long service life, even in harsh industrial environments. These models are ideal for a wide range of flow rates and are available in various capacities to meet your specific water treatment needs.

The Ionic® Advantage

No Moving Parts

Guarantees a maintenance-free design, reducing downtime and mechanical failures.

Quick Start-Up

The system fully stabilizes within ~20 minutes, perfect for rapid deployment.

Compact Design

Requires minimal floor space, making it ideal for confined or indoor installations.

Integrated Sludge Thickener

A four-sloped hopper bottom eliminates the need for a separate thickening unit.

Easy Maintenance

Corrosion-resistant FRP plates can be removed individually without system shutdown.

High Treatment Capacity

Expertly designed to handle high solids loads while maintaining superior effluent quality.

Optimized Hydraulic Flow

Internal feed ducts distribute water evenly to minimize turbulence and maximize settling.

Customizable & Scalable

Fully tailored to handle a wide range of flow rates and treatment capacities.

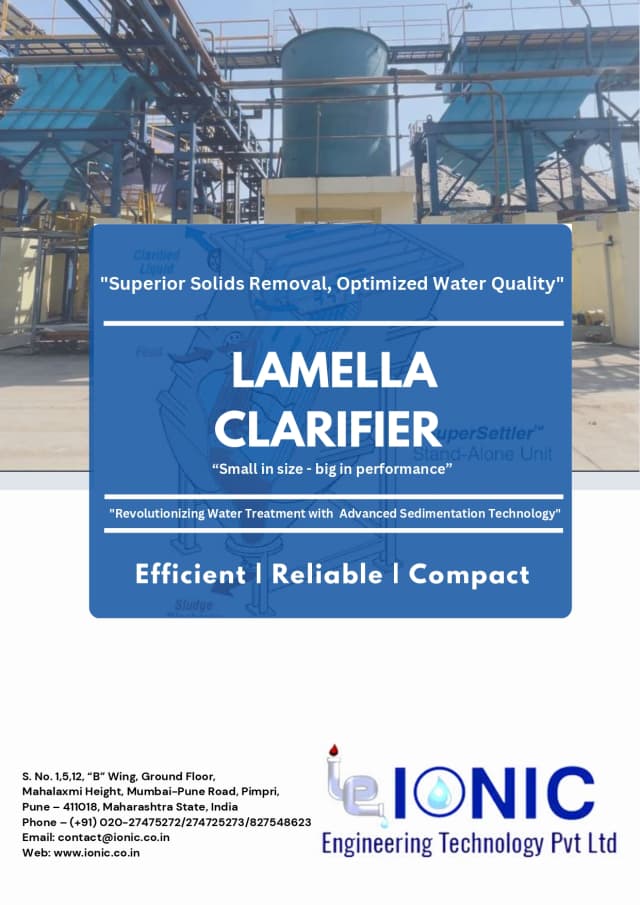

Brochures & Documents

Lamella Clarifier

Lamella Clarifier

Expertise You Can Rely On

Choosing Ionic means choosing a partner dedicated to your success. We don't just sell equipment; we provide expert advice and lifetime support.

ISO 9001:2015 Certified

With over 20 years of experience, we provide "Quality by Design" engineered systems that bring our customers "Peace of Mind".

Trusted by Industry Leaders

Our systems are used by multinational companies such as Unilever, Coca-Cola, Loreal, Tata Motors, and Bajaj.
