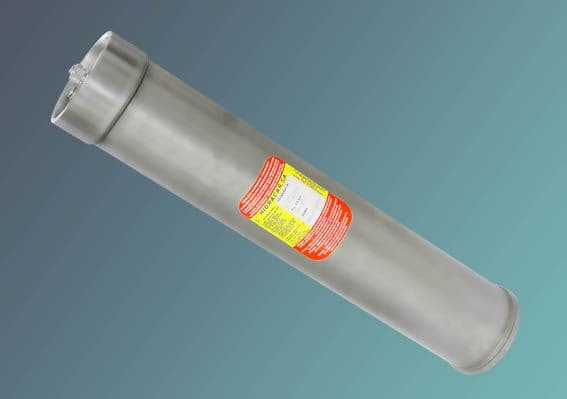

Bellows Pulsation Damper
Corrosion-Resistant Bellows Dampening for Challenging Applications
HIDRACAR Bellows Pulsation Dampers are available in AISI 316L stainless steel, PVC, PVDF, or PTFE construction, offering volumes from 0.15 to 15 liters with design pressures up to 60 bar. Ideal for corrosive liquids and high-temperature applications where traditional dampeners cannot be used.
Applications
Specialized bellows dampening solutions for corrosive and high-temperature applications.
Corrosive Liquid Handling
High-Temperature Systems
Chemical Processing
Low-Pressure Applications
Features and Benefits
Versatile bellows technology engineered for demanding chemical and temperature applications.
Multiple Material Options
Available in AISI 316L stainless steel, PVC, PVDF, or PTFE for diverse chemical compatibility.
Corrosion-Resistant Design
PTFE bellows provide excellent resistance to aggressive and corrosive liquids.
High-Temperature Capability
Stainless steel bellows handle liquids that PTFE cannot tolerate or very high temperatures.
Wide Volume Range
Volumes from 0.15 to 15 liters with PTFE bellows (0.7 to 15 liters for stainless steel).
Custom Design Available
Special design bellows dampeners manufactured on request for unique applications.
Technical Specifications
Comprehensive specifications for bellows-type pulsation dampening in challenging applications.
| Parameter | Value | Unit | Range/Notes |
|---|---|---|---|
| Body Material - Standard | AISI 316L Stainless Steel | - | Also available in PVC, PVDF, special materials |
| Bellows Material | PTFE or Stainless Steel | - | PVC, PVDF options available |
| Volume Range - PTFE Bellows | 0.15 - 15 | liters | Standard capacity range |
| Volume Range - Stainless Steel Bellows | 0.7 - 15 | liters | For high-temperature applications |
| Design Pressure | Up to 60 | bar | Low to medium pressure applications |
| Application Type | Corrosive Liquids | - | Low pressure, high temperature |

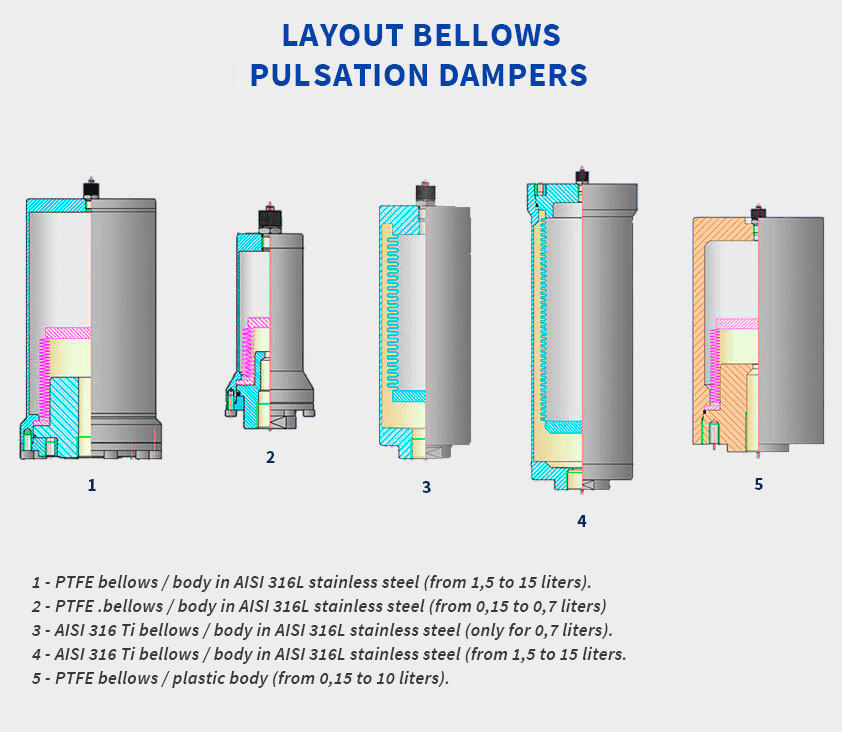

Layout Of HIDRACAR Bellows Pulsation Dampers
Detailed layout configurations showing various bellows pulsation damper designs.
Technical layout and configuration options for bellows dampeners
Find the Right Bellows Damper Solution
Contact our specialists to select the appropriate bellows pulsation damper material and configuration for your corrosive liquid or high-temperature application.
Downloads
Brochures and datasheets for Bellows Pulsation Damper
SS pulsation damper with ptfe bellows and ss nozzle
SS pulsation damper with ptfe bellows and plastic nozzle
SS pulsation damper with ss bellows
Special designs for bellows pulsation dampers
