Pulsation Dampers

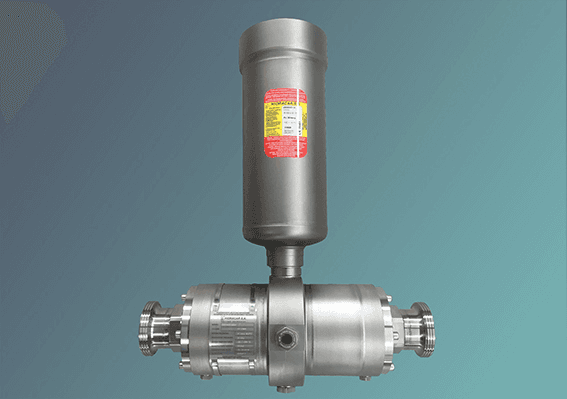

In-line Pulsation Damper
Advanced In-Line Dampening for Food, Pharmaceutical, and Wastewater Applications
HIDRACAR offers advanced in-line pulsation dampers, including the "L" series for hygienic food, beverage, and pharmaceutical applications, and specialized models for effective wastewater treatment and suction.
Applications
Versatile in-line pulsation dampening solutions for hygienic and industrial applications.
Food & Beverage Industry
Pharmaceutical Industry
Wastewater Treatment
Suction Applications
Features and Benefits
Innovative in-line design engineered for maximum dampening efficiency and hygienic operation.
FDA-Certified Rubber Components
Equipped with FDA-approved EPDM or silicone rubber tubes certified for food and pharmaceutical use.
CIP Process Compatible
Designed without corners for effective cleaning in place, preventing product retention.
No Water Hammer Effect
Internal passage section identical to connection section eliminates water hammer and maintains flow.
Superior Dampening Capacity
80% reduction in high-frequency pulsation with up to 900cc volume absorption capacity.
Optional Breakage Indicator
Double tube configuration with breakage detection ensures continuous operation during maintenance.
In-Circuit Maintenance
Bladder replacement without system disconnection reduces downtime significantly.
Technical Specifications
Advanced in-line design specifications for hygienic and industrial pulsation dampening applications.
| Parameter | Value | Unit | Range/Notes |
|---|---|---|---|
| Series Designation | L Series | - | For food, beverage, pharmaceutical applications |
| FDA Compliance | Certified | - | EPDM or Silicone rubber tubes |
| Dampening Efficiency | 80 | % | High-frequency pulsation reduction |
| Volume Absorption | Up to 900 | cc | Tube deformation capacity |
| Charging Pressure | 80% of Working Pressure | - | No limitation on nitrogen pressure |
| CIP Compatible | Yes | - | Clean-in-place design without corners |
| Maintenance | In-Circuit Replacement | - | No disconnection required |
Advanced In-Line Dampening Solutions
Contact our specialists to learn more about HIDRACAR in-line pulsation dampers and find the perfect solution for your food, pharmaceutical, or wastewater treatment application.
