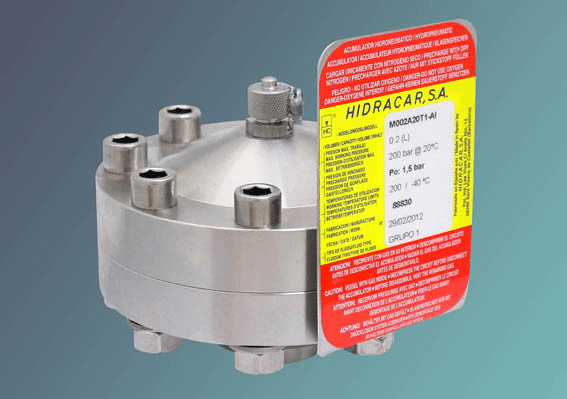

Membrane Pulsation Damper
Double Membrane Technology for Corrosive Liquid Applications
HIDRACAR Membrane type pulsation dampeners use a TFM 1705 membrane together with a second, FKM, one as separators. The second membrane provides a 100% air-tightness that the porosity of the relatively thin TFM material of the main membrane can't fully provide under a relatively high pressure.
Applications
Superior membrane dampening solutions for corrosive and high-pressure applications.
Corrosive Liquid Handling
Chemical Processing
High-Pressure Systems
Industrial Pulsation Control
Features and Benefits
Advanced double membrane technology engineered for superior air-tightness and chemical resistance.
Double Membrane Design
TFM 1705 primary membrane with FKM secondary membrane ensures 100% air-tightness.
Corrosion-Resistant Construction
Standard AISI 316L stainless steel body, also available in Duplex, Hastelloy, PVC, and special materials.
High-Pressure Capability
Design pressures up to 700 bar for demanding applications.
Wide Volume Range
Volumes from 0.2 to 15 liters to suit various flow requirements.
Custom Design Available
Special design membrane dampeners manufactured on request for unique applications.
Technical Specifications
Comprehensive specifications for membrane-type pulsation dampening in demanding applications.
| Parameter | Value | Unit | Range/Notes |
|---|---|---|---|
| Body Material - Standard | AISI 316L Stainless Steel | - | Also available in Duplex, Hastelloy, PVC, special materials |
| Primary Membrane Material | TFM 1705 | - | Chemical resistant fluoropolymer |
| Secondary Membrane Material | FKM | - | Provides 100% air-tightness |
| Volume Range | 0.2 - 15 | liters | Standard capacity range |
| Design Pressure | Up to 700 | bar | Standard to high-pressure applications |
| Application Type | Corrosive Liquids | - | Particularly suited for aggressive chemicals |

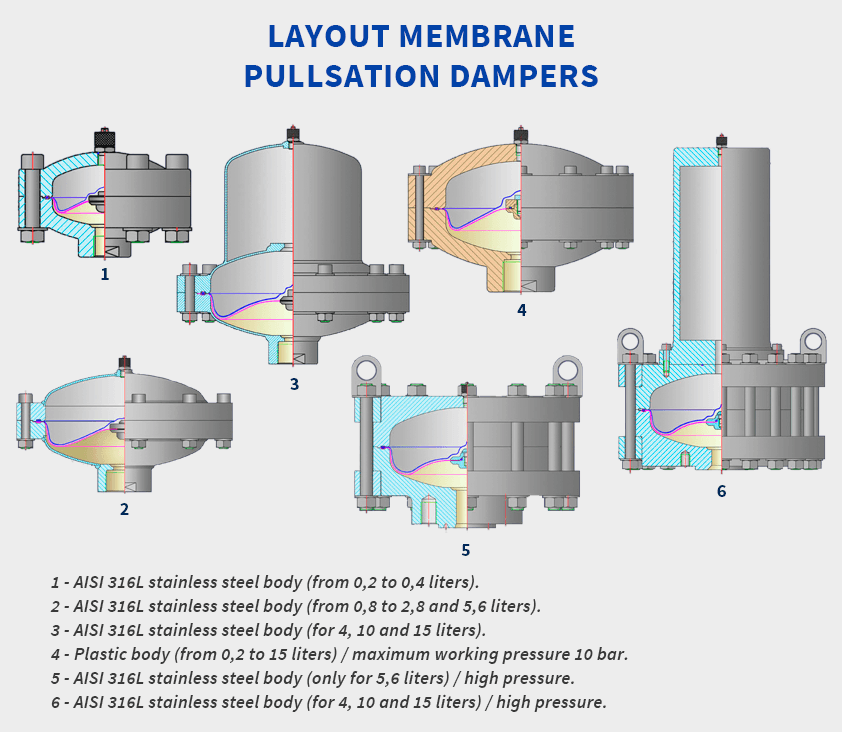

Layout Of HIDRACAR Membrane Pulsation Dampers
Detailed layout configurations showing various membrane pulsation damper designs.
Technical layout and configuration options for membrane dampeners
Find the Right Membrane Damper Solution
Contact our specialists to select the appropriate membrane pulsation damper material and configuration for your corrosive liquid or high-pressure application.
Downloads
Brochures and datasheets for Membrane Pulsation Damper
PTFE membrane pulsation damper
Special designs for membrane pulsation dampers
