Membranes

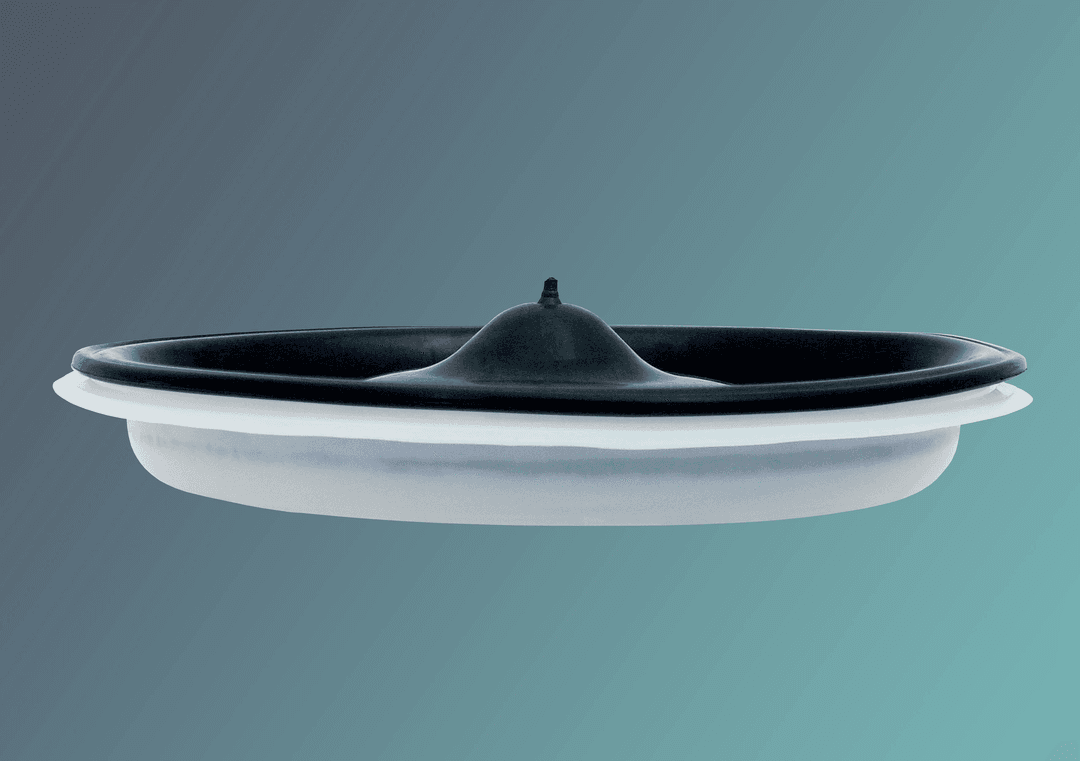

Double Membrane Technology for Superior Air-Tightness
HIDRACAR manufactures a double membrane in order to provide proper 100% air-tightness, which could be otherwise compromised by a simple one when the pulsation dampener is working at relatively high pressure. The double membrane incorporates both a TFM 1705 membrane and a second, either FKM membrane that provides the proper air-tightness. Available for all of our membrane type pulsation dampener sizes. All membranes are supplied with a self-centering anti-extrusion button insert made in the same material as the body of the pulsation dampener (stainless steel, carbon steel, PVC, polypropylene, PVDF,…).
Applications
Precision replacement membranes for all HIDRACAR membrane-type pulsation dampener sizes.
Membrane Pulsation Dampers
High-Pressure Applications
Chemical Processing
Maintenance and Refurbishment
Features and Benefits
Advanced double membrane technology engineered for maximum reliability and air-tightness.
Double Membrane Design
Dual-layer construction ensures 100% air-tightness even at high pressures.
TFM 1705 Primary Membrane
Advanced TFM 1705 material provides excellent chemical resistance and durability.
FKM Secondary Membrane
FKM material ensures proper air-tightness and prevents gas permeation.
Self-Centering Anti-Extrusion Button
Included insert matched to damper body material prevents membrane extrusion.
Universal Compatibility
Available for all HIDRACAR membrane-type pulsation dampener sizes.
Technical Specifications
High-performance membrane specifications designed for reliable operation across all damper sizes.
| Parameter | Value | Unit | Range/Notes |
|---|---|---|---|
| Membrane Type | Double Membrane | - | TFM 1705 + FKM construction |
| Primary Material | TFM 1705 | - | Chemical resistant fluoropolymer |
| Secondary Material | FKM | - | Air-tightness layer |
| Air-Tightness | 100% | - | Even at high pressures |
| Anti-Extrusion Button Materials | Stainless Steel, Carbon Steel, PVC, PP, PVDF | - | Matched to damper body |
| Size Range | All Membrane Damper Sizes | - | Complete HIDRACAR range |
Ensure Optimal Damper Performance
Contact our specialists to order replacement membranes for your HIDRACAR membrane-type pulsation dampener, ensuring continued reliable operation and 100% air-tightness.
