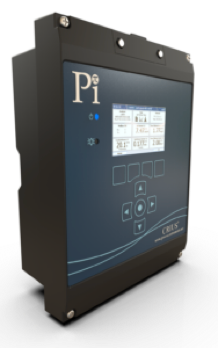

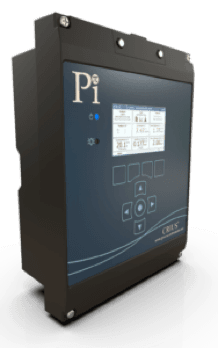

CRIUS®4.0 Controller
Industry 4.0 Compliant Advanced Water Treatment Controller
The CRIUS®4.0 controller is a versatile and high-performance instrument designed for superior functionality. As the advanced version of the CRONOS®, it offers enhanced features such as multiple sensor connections, an intuitive color display, and optional built-in 3G/4G modem or LAN adapter. The CRIUS®4.0 delivers exceptional value with Industry 4.0 compliance, including IoT-enabled live, encrypted data access through the MQTT protocol.
Applications
Industry 4.0 compliant controller for advanced water treatment across diverse applications.
Swimming Pools
Municipal Drinking Water
Industrial Processes
Water Treatment
Wastewater
Food and Beverage
Key Benefits
Industry-leading controller technology with IoT connectivity and advanced process control capabilities.
Multi-Sensor Capability
Connect up to four sensors with ability to link four CRIUS units, reducing operational costs significantly.
Integrated PID Controls
Multiple PID loops enhance process efficiency and lower expenses with precise control.
Built-In Data Logging
Standard data logging ensures complete process traceability and compliance documentation.
IoT Remote Access (MQTT)
Industry 4.0 compliant with live, encrypted global data access via MQTT protocol.
Autocleaning Sensors
Self-cleaning sensor options minimize maintenance and reduce total ownership costs.
Advanced Security
Individual user logins with multi-level access control for enhanced system security.
Technical Specifications
Advanced Industry 4.0 compliant specifications for comprehensive water treatment control and monitoring.
| Parameter | Value | Unit | Range/Notes |
|---|---|---|---|
| Sensor Inputs | Up to 4 (expandable to 16) | - | Compatible with all Pi sensors |
| System Linking | Up to 4 Units | - | Shared display and communication |
| Display | Intuitive Color Display | - | Standard feature |
| Data Logging | Built-In | - | Standard feature |
| Communication | Modbus RS485, TCP/IP, Profibus | - | Multiple protocols supported |
| Remote Access | 3G/4G Modem or LAN | - | Optional built-in connectivity |
| IoT Connectivity | MQTT Protocol | - | Industry 4.0 compliant |
| Expandability - Analog I/O | Up to 32 | - | Maximum expansion |
| Expandability - Digital Inputs | Up to 32 | - | Maximum expansion |
| Expandability - Relay Outputs | Up to 32 | - | Maximum expansion |
Experience Industry 4.0 Water Treatment
Contact our specialists to configure your CRIUS®4.0 controller with IoT connectivity, remote access, and the appropriate sensors for your advanced water treatment application.
