Ionic Lamella Clarifier

Small in size - Big in performance

Engineered to deliver superior solids removal and optimize water quality by maximizing separation efficiency in a fraction of the space.

Request a Quote

How It Works: High-Efficiency Sedimentation

Working principle diagram of a Lamella Clarifier

Flocculation

Untreated water enters a flash mix tank where chemicals are added, causing suspended particles to clump together into larger "flocs".

Upward Flow & Settling

Water enters the bottom of the Lamella unit and flows upward. As it rises, the flocs settle onto the large surface area of the inclined plates.

Clarified Water Outlet

The clean, clarified water continues to the top of the unit and is discharged evenly over an adjustable weir system.

Sludge Collection

Settled precipitates slide down the plates into an integrated hopper at the bottom for periodic removal and disposal.

Choosing the Right Sedimentation Technology

Understanding the key differences is crucial for optimizing your process. Here’s how Lamella Clarifiers stack up against other common technologies.

Feature	Lamella Clarifier	Circular Clarifier	Tube Settler
Footprint	Very Compact (up to 90% less space)	Very Large	Compact
Settling Efficiency	High (Ideal for fine particles)	Moderate	Good
Sludge Handling	Good (Integrated hopper)	Complex (Requires scraper)	Moderate
Maintenance	Low (No moving parts)	High (Moving parts)	Moderate (Tube cleaning)

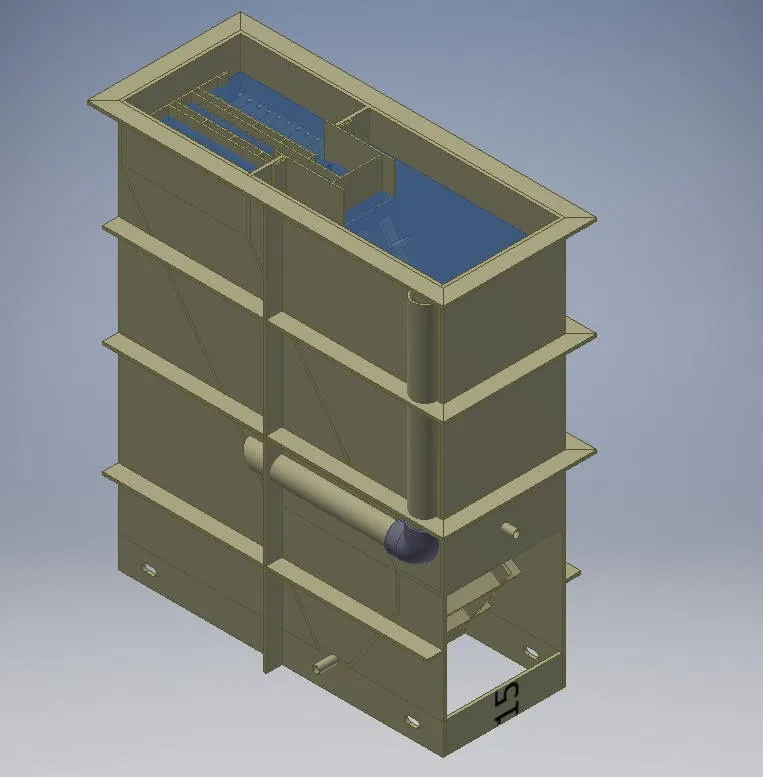

Lamella clarifier made from PP-H engineering plastic

High-Efficiency Lamella Clarifiers in Engineering Plastic

Our Lamella Clarifiers are engineered for superior performance in a compact footprint. By utilizing a series of inclined plates, they dramatically increase the effective settling area, making them far more efficient than traditional settling tanks. For applications requiring maximum chemical and corrosion resistance, we construct these units from high-grade engineering plastic (PP-H). This ensures exceptional durability and a long service life, even in harsh industrial environments. These models are ideal for a wide range of flow rates and are available in various capacities to meet your specific water treatment needs.

The Ionic Advantage

No Moving Parts

Guarantees a maintenance-free design, reducing downtime and mechanical failures.

Quick Start-Up

The system fully stabilizes within ~20 minutes, perfect for rapid deployment.

Compact Design

Requires minimal floor space, making it ideal for confined or indoor installations.

Integrated Sludge Thickener

A four-sloped hopper bottom eliminates the need for a separate thickening unit.

Easy Maintenance

Corrosion-resistant FRP plates can be removed individually without system shutdown.

High Treatment Capacity

Expertly designed to handle high solids loads while maintaining superior effluent quality.

Optimized Hydraulic Flow

Internal feed ducts distribute water evenly to minimize turbulence and maximize settling.

Customizable & Scalable

Fully tailored to handle a wide range of flow rates and treatment capacities.

Technical Resources

Download detailed specifications and engineering data.

Lamella Clarifier

Our Network

Trusted by Industry Leaders

Partnering with global organizations to deliver sustainable engineering excellence and innovative water and waste water treatment solutions.

Frequently Asked Questions

Frequently asked questions about our Lamella Clarifier.

Still have questions?

Contact our support team

Our Lamella Clarifier is designed to be highly compact, offering up to 90% footprint savings compared to conventional clarifiers or settling tanks.

No. The system operates on gravity and hydraulic principles with no moving parts, making it virtually maintenance-free and highly reliable.

The system has a very short stabilization time. It can reach full operational efficiency and produce clear water within approximately 20 minutes from start-up.

No. The unit features an integrated sludge thickening hopper at the bottom, which concentrates the settled solids for easy removal, eliminating the need for extra equipment.
