Revolutionizing Water Treatment with Advanced Polymer Preparation
Introducing the Ionic Polymix, the compact, reliable, and efficient system for automated poly-electrolyte preparation. Achieve superior solids removal and optimized water quality with a stand-alone unit that is small in size but big in performance.
Tired of Inconsistent, Labor-Intensive Polymer Preparation?

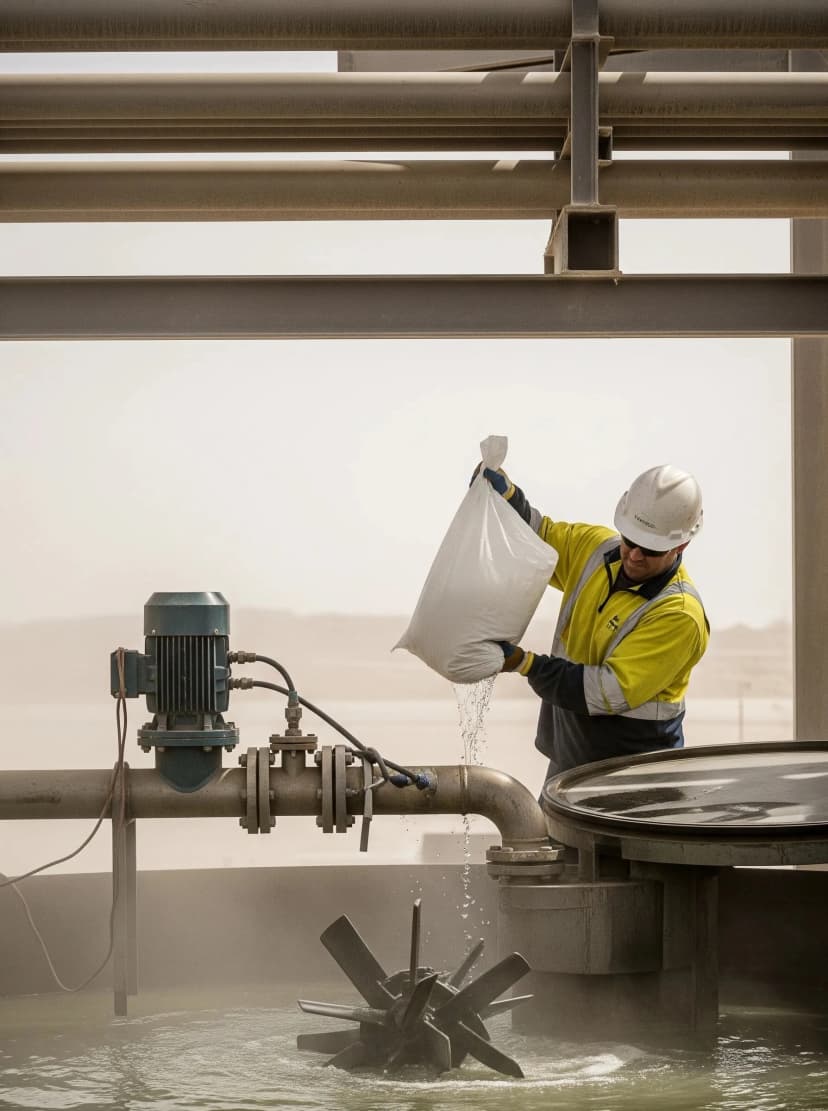

Traditional methods of preparing poly-electrolyte solutions are often plagued by issues. Manual mixing can lead to inconsistent batch quality, chemical clumping, and wasted materials, impacting the efficiency of your entire water treatment process.
The Polymix Solution: Automated, Compact, and Flawless

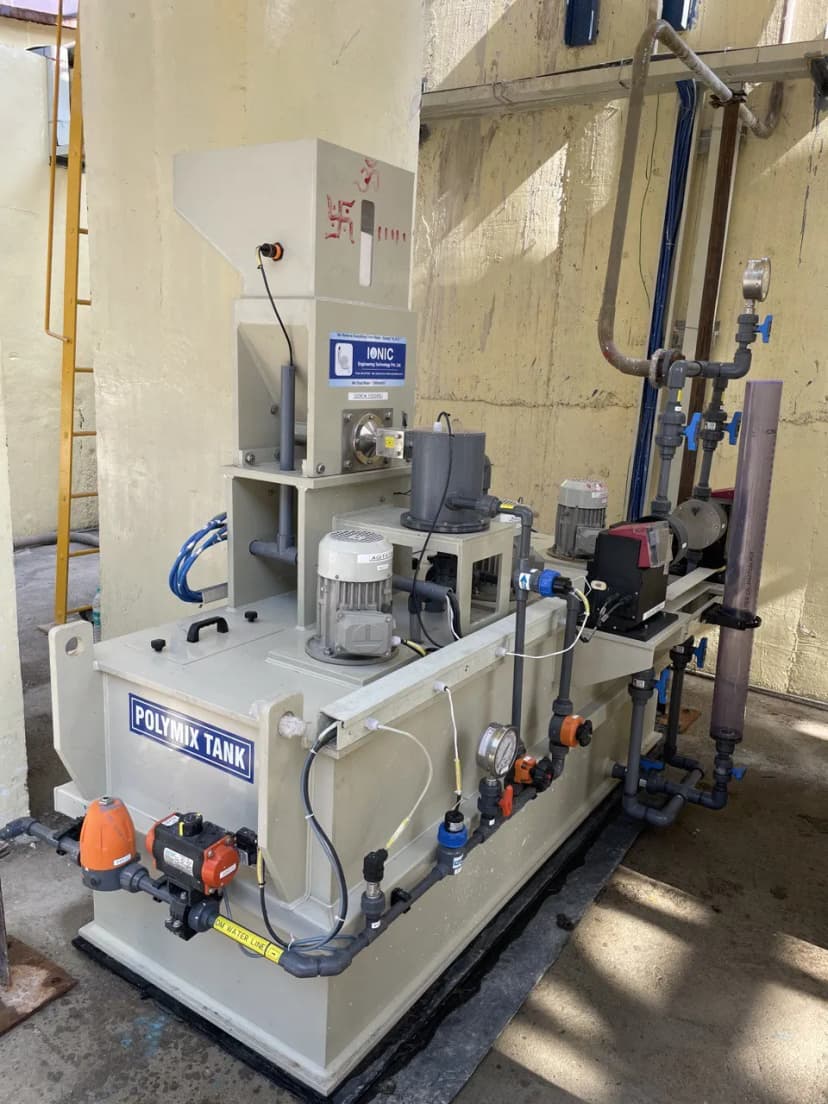

The Ionic Polymix system is engineered to eliminate the challenges of manual preparation. This compact, ready-to-operate system automates the entire process to ensure a perfectly consistent polymer solution every time.
Key Features & Benefits
Automated PLC Control
An intelligent PLC-based control panel with a color touchscreen HMI allows for easy, automatic system control and remote operation.
Advanced Wetting System
A specialized wetting cone and mixing device prevents clumping by ensuring the polymer is uniformly wetted before mixing.
Durable PP Construction
Features a high-quality, welded polypropylene (PP-H) tank for exceptional durability and chemical resistance against corrosion.
Gentle & Efficient Mixing
VFD-controlled, slow-speed electric stirrers provide gentle mixing to preserve polymer integrity for maximum performance.
Compact, All-in-One Design
A stand-alone system integrating all components into a compact footprint, requiring only power and water for installation.
Continuous Operation
Multi-chamber designs separate fresh and matured solutions, guaranteeing a continuous supply of perfectly aged polymer.
Find the Perfect Polymix for Your Application

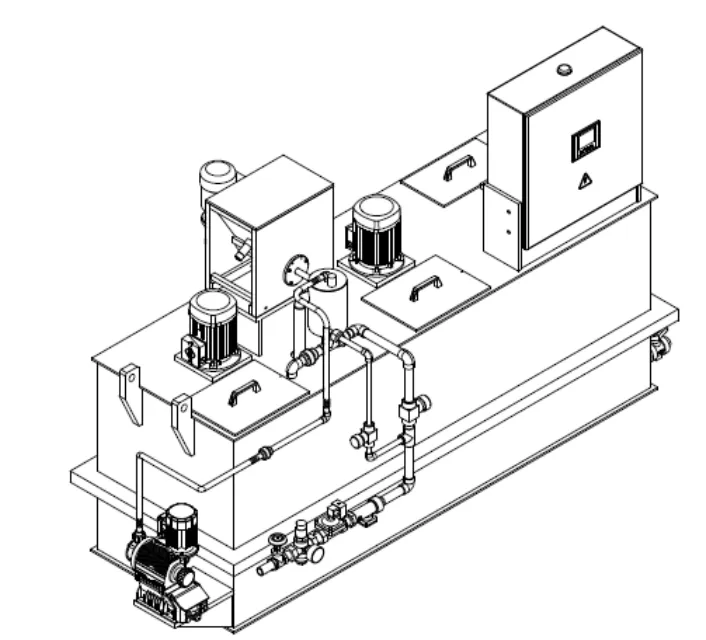

POLYMIX-BT
Manual Batch System
- Capacity: Ideal for non-continuous, manual batch operations.
- Prepares batch concentrations of up to 0.5%.
- Features a single-chamber storage tank made of durable PP-H.
- Equipped with a slow-speed stirrer for gentle mixing.
Key Feature: A cost-effective and robust solution for preparing PE solutions with manual flocculant addition.

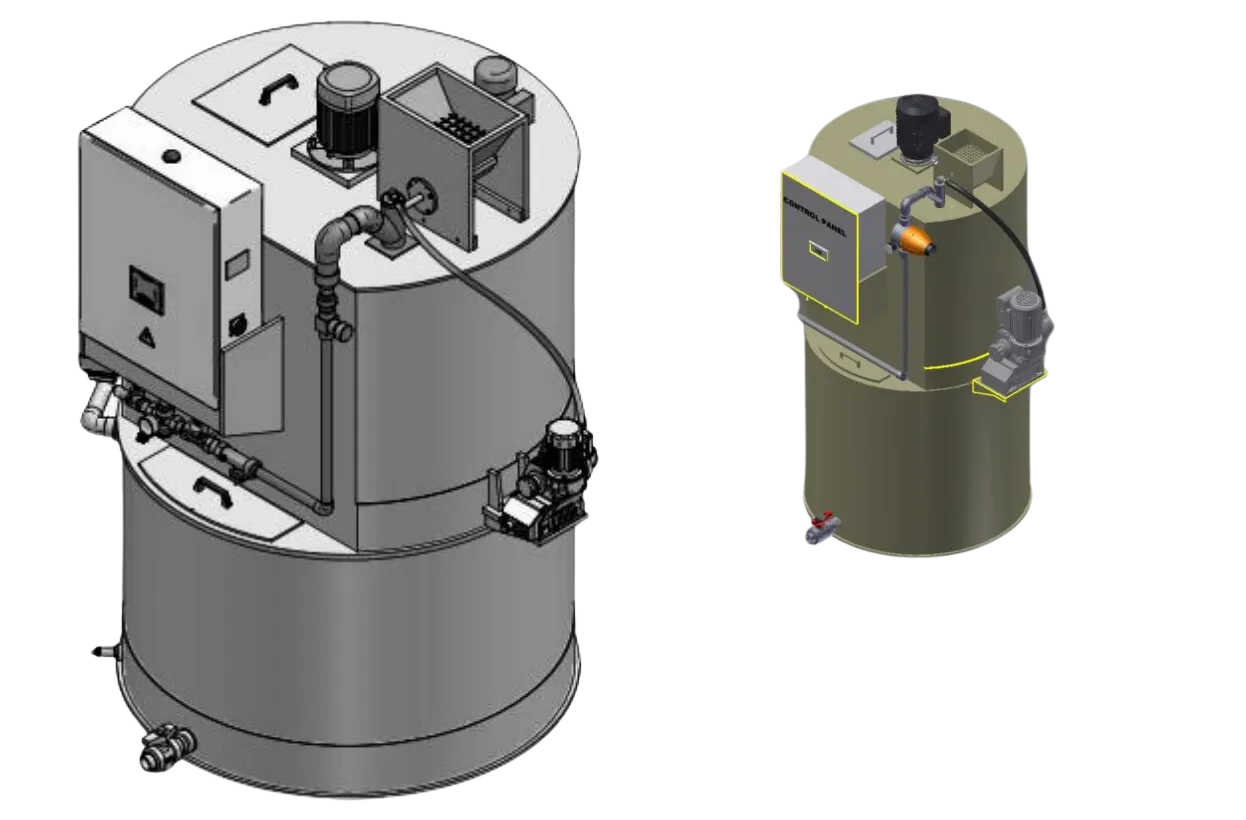

POLYMIX-BT-DD-A
Automatic Dual-Chamber
- Capacity: Designed for a continuous supply of PE solution.
- Fully automatic system for both dry powder and liquid emulsion polymers.
- Features a PLC-based control system for full process control.
- Includes a screw feeder for powder and a pump for emulsion concentrate.
Key Feature: A dual-chamber design prevents mixing of fresh and matured solutions to ensure consistent quality.

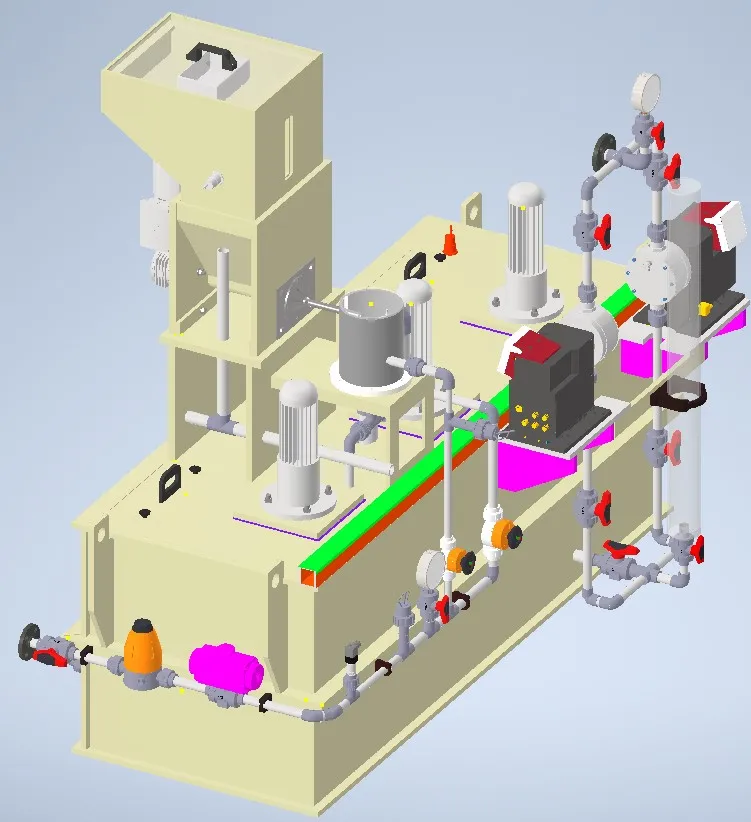

POLYMIX-3C-A-X
Advanced Automatic
- Feeder Rate: 50 - 100 kg/day.
- Prepares powdered polymer solutions from 0.05% to 0.5%.
- Features a 1500-liter, baffled, three-compartment tank.
- Comes with a PLC-based control panel with a color touchscreen HMI.
Key Feature: A ready-to-operate, three-compartment system for ultimate control and precision.
Technical Resources
Download detailed specifications and engineering data.
Polymix - Poly-electrolyte Solution Preparation and Dosing System
Our Network
Trusted by Industry Leaders
Partnering with global organizations to deliver sustainable engineering excellence and innovative water and waste water treatment solutions.
Frequently Asked Questions
Learn more about the Polymix Dosing System.
Still have questions?
Contact our support teamThe Polymix system is versatile and engineered to effectively prepare and dose both anionic and cationic polyelectrolyte powders.
Yes. The intelligent multi-chamber design (Preparation, Maturation, and Dosing zones) ensures that there is always a continuous supply of fully aged and ready-to-use polymer solution.
We utilize a specialized wetting cone and high-efficiency water eductor. This system ensures that individual powder particles are fully wetted and dispersed before they enter the mixing tank, preventing the formation of clumps.
The tanks and key components are constructed from high-quality, corrosion-resistant Polypropylene (PP-H), ensuring long-term durability even in harsh chemical environments.
